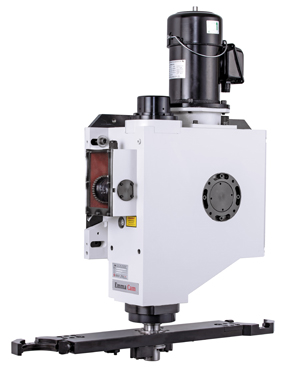

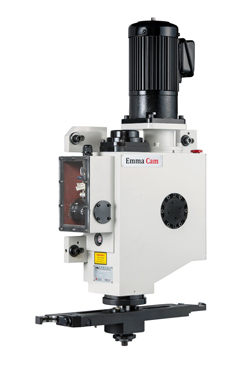

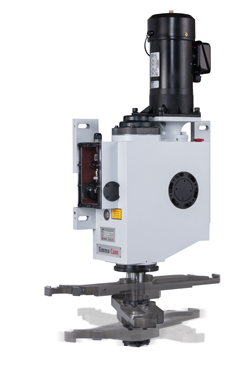

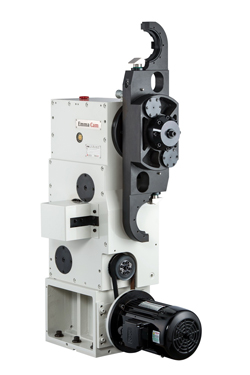

自动换刀机构特性

● 滚子式凸轮最适合于ATC分割器之装置，其优点如下:

● Roller轴(输出轴)的惯性矩小

● 体积小，出力大

● 可组合许多动作，且在凸轮同一转向时滚子轴可正逆向转动

● 精度高，分度范围广，运动曲线可任意搭配

● 抓刀速度稳定，无噪音

● 夹刀稳定，可确保主轴头之精度及提高使用寿命

规格表Specification

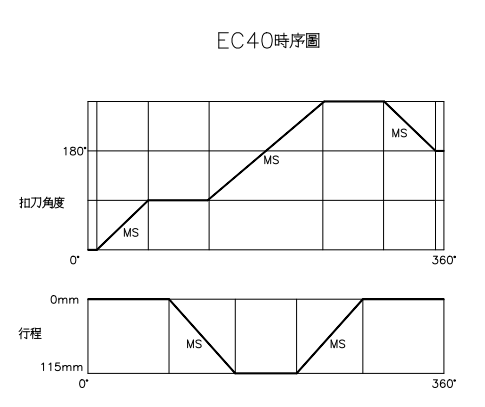

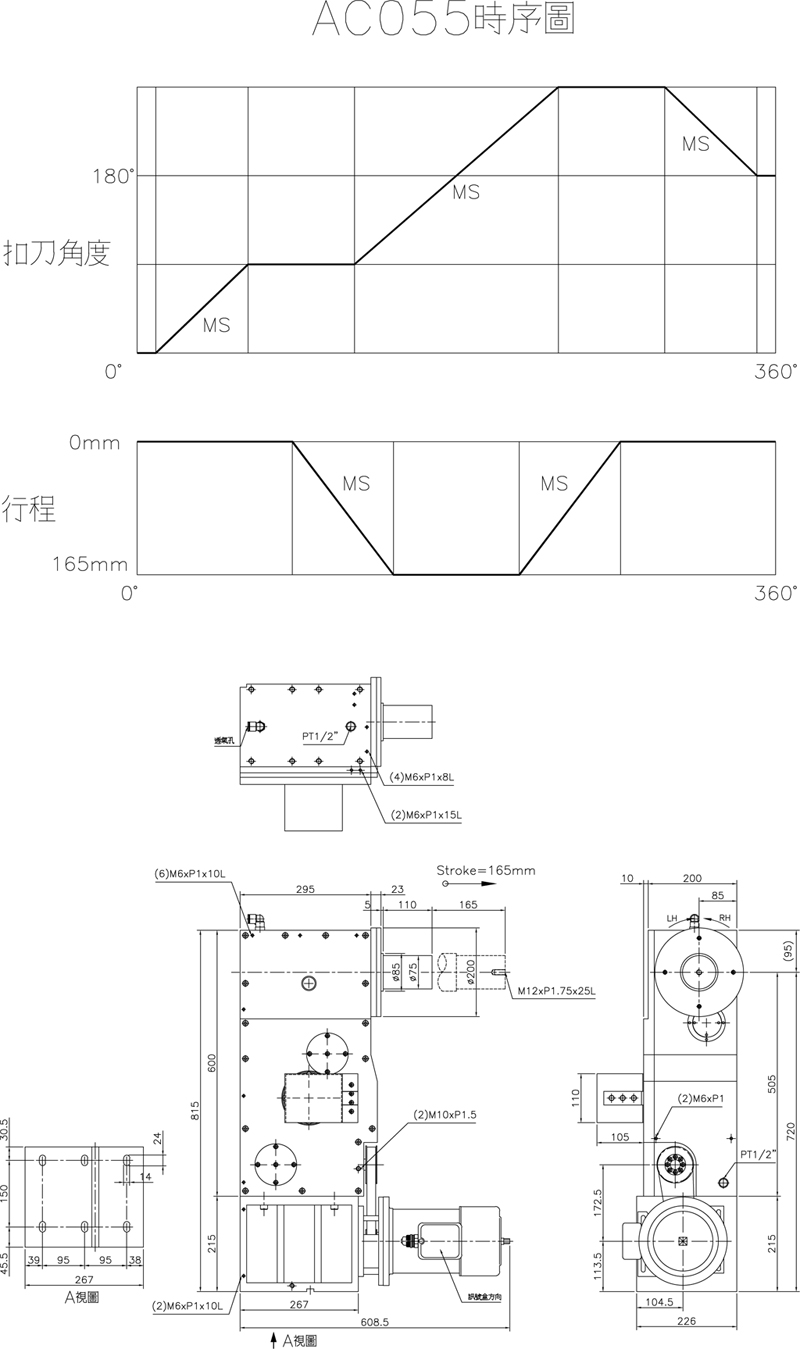

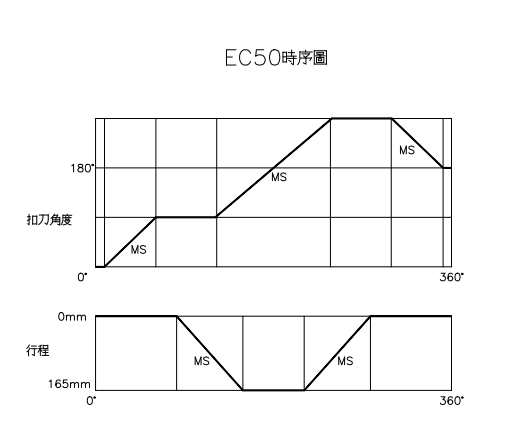

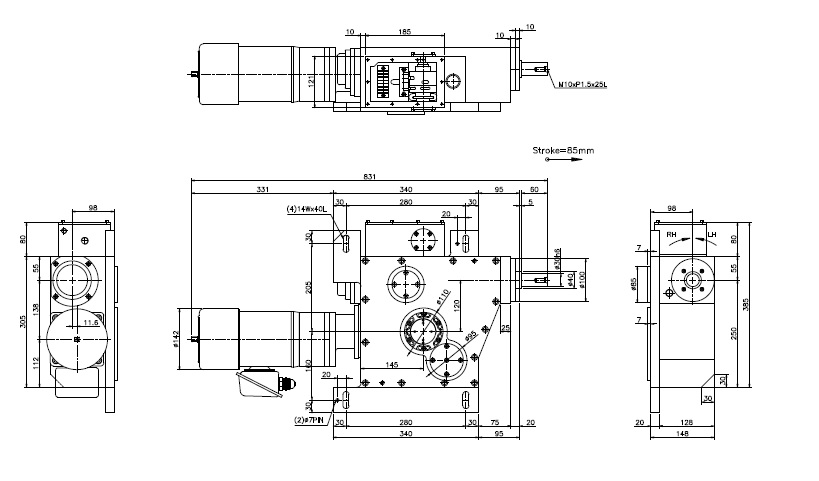

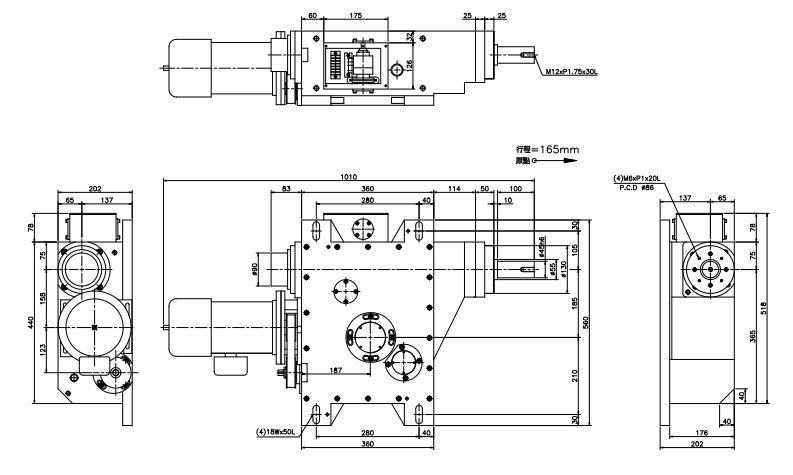

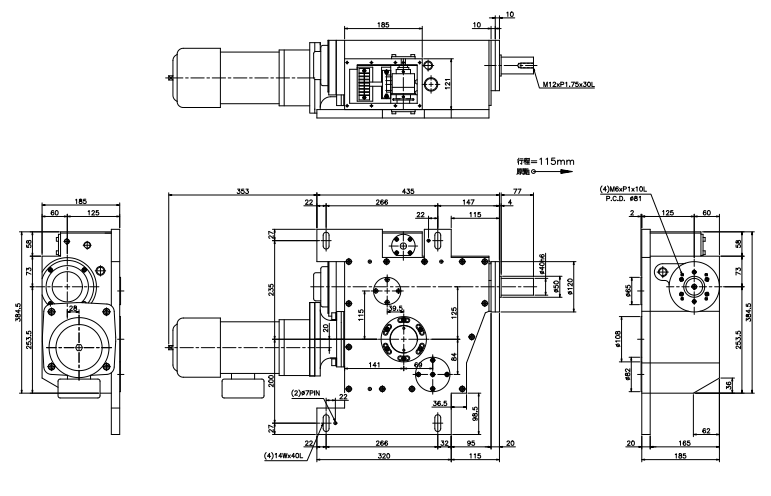

型号/ Part Number	AC032	AC042	AC052	AC055
换刀时间 Time interval for cutter	50Hz = 0.99 sec (4kg/side) 60Hz = 0.84 sec (4kg/side)	50Hz = 1.55 sec (8kg/side) 60Hz = 1.31 sec (8kg/side)	50Hz = 2.91 sec (17kg/side) 60Hz = 2.45 sec (17kg/side)	50Hz = 2.96 sec (18kg/side) 60Hz = 2.49 sec (18kg/side)
拉刀行程 Cutter pulling stroke change	85 mm	115 mm	165 mm	165 mm
最大荷重 Maximum loading	4.5 kg / side (依换刀时间快慢而定) (determined by the time interval for cutter change)	8 kg / side (依换刀时间快慢而定) (determined by the time interval for cutter change)	20 kg / side (依换刀时间快慢而定) (determined by the time interval for cutter change)	30 kg / side (依换刀时间快慢而定) (determined by the time interval for cutter change)
制品重量 Weight of product	90 kg	115 kg	200 kg	240 kg
驱动马力 Driving horse power	1/2 HP (370W)	3/4 HP (550W))	1.5 HP (1100W)	1.5 HP (1100W)
精度 Accuracy	定位精度 Positioning accuracy 60’’ 重复精度Overlapping accuracy 10’’ 行程精度 Accuracy of the stoke 0.1mm	定位精度 Positioning accuracy 60’’ 重复精度Overlapping accuracy 10’’ 行程精度 Accuracy of the stoke 0.1mm	定位精度 Positioning accuracy 60’’ 重复精度Overlapping accuracy 10’’ 行程精度 Accuracy of the stoke 0.1mm	定位精度 Positioning accuracy 60’’ 重复精度Overlapping accuracy 10’’ 行程精度 Accuracy of the stoke 0.1mm
